Perpustakaan Nirkabel Project at Enggano Island
Enggano is one of the 92 inhabited frontier islands in Indonesia. This area remains relatively underdeveloped due to the challenges and expenses involved in transportation to the island of Sumatra.
The on-site Perpustakaan Nirkabel is equipped with a 15dB antenna, which has a strong reach of 1-2 kilometers. This antenna serves not only educational purposes but also helps improve local communication infrastructure. In Enggano, the unit is specially designed to be directly connected to a car or motorcycle battery using a specific adapter.
This adapter is intended for situations when there is a complete power outage. During emergencies, residents can utilize the communication service provided by this transmitter as a free emergency communication infrastructure. In post-disaster scenarios, the unit can operate using a regular 5V/2A power bank.
The powerful antenna is utilized by the Perpustakaan Nirkabel in Kedungpring (Jombang), Ainiut (North Central Timor), and Laenmanen (Malacca). However, while the Perpustakaan Nirkabel projects in Ainiut and Laenmanen have ceased, Enggano is still utilizing the long-range antenna type. Due to the high procurement and shipping costs associated with this antenna, it is no longer the primary choice for other projects.
 |
|---|

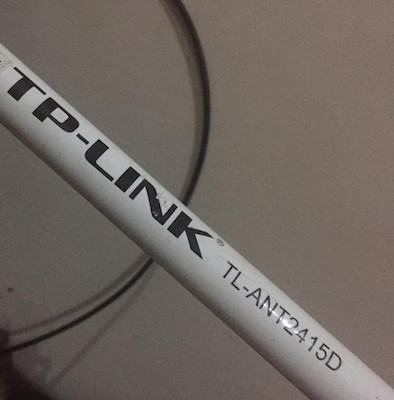

| Antenna TP Link 15 Dbi omni type. This antenna is 80 cm long. When properly installed, the Wireless Library's signal can reach as far as three kilometers from a base station. |
| :--: |
 |
| :--: |

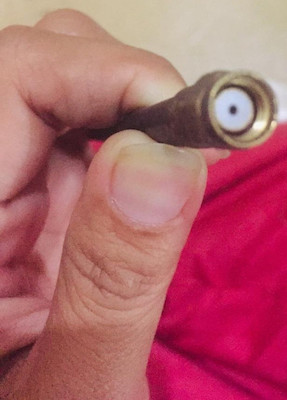

| Antenna SMA Connector |
| :--: |
 |
| :--: |

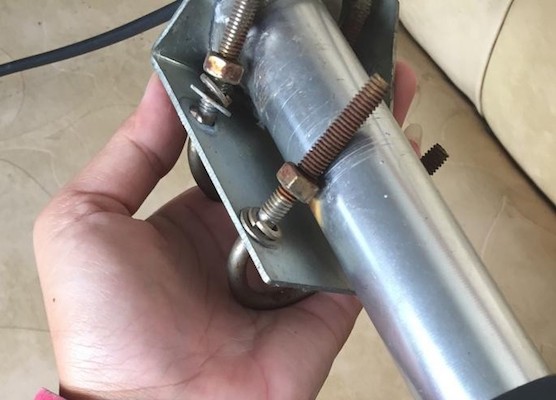

| Transmitter antenna bracket |
| :--: |
 |
| :--: |
| The handover from the Head of the Enggano Subdistrict Head to the residents to be installed in a mutually agreed location. |
| :--: |
 |
| :--: |

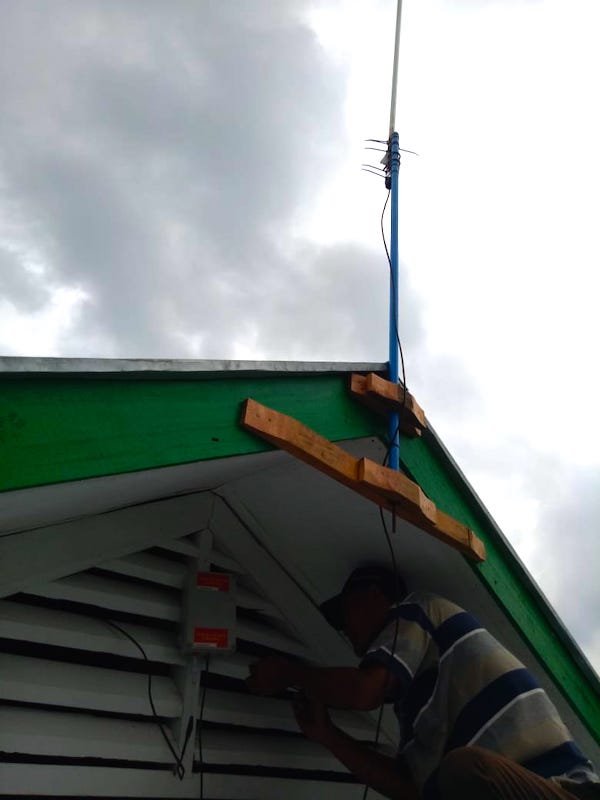

| Installation of the transmitter server box |
| :--: |
 |
| :--: |

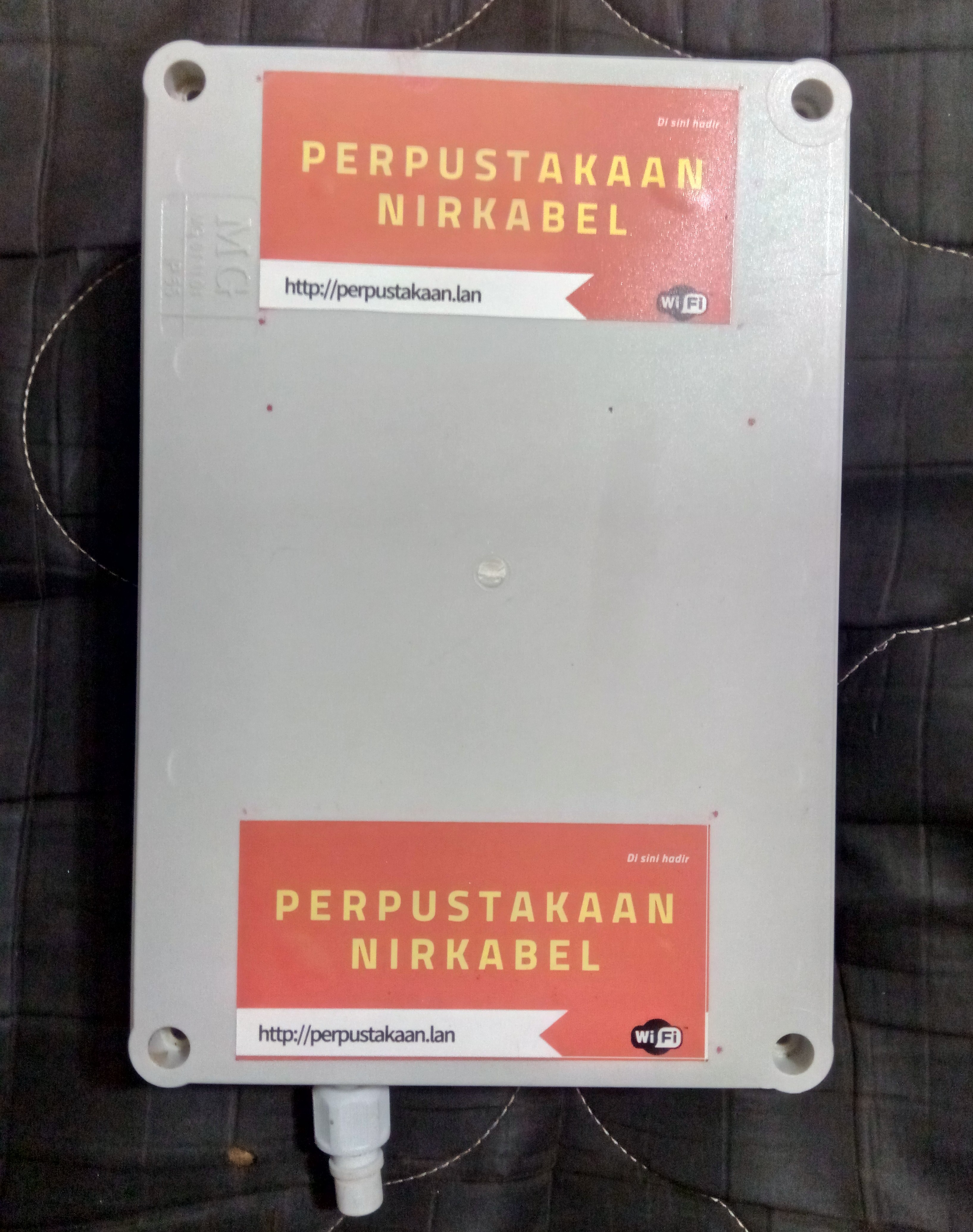

| Server box. IP-58 standard weather changing stage. The server for Enggano can run from both the market 5V/2A battery and power bank |
| :--: |
 |
| :--: |

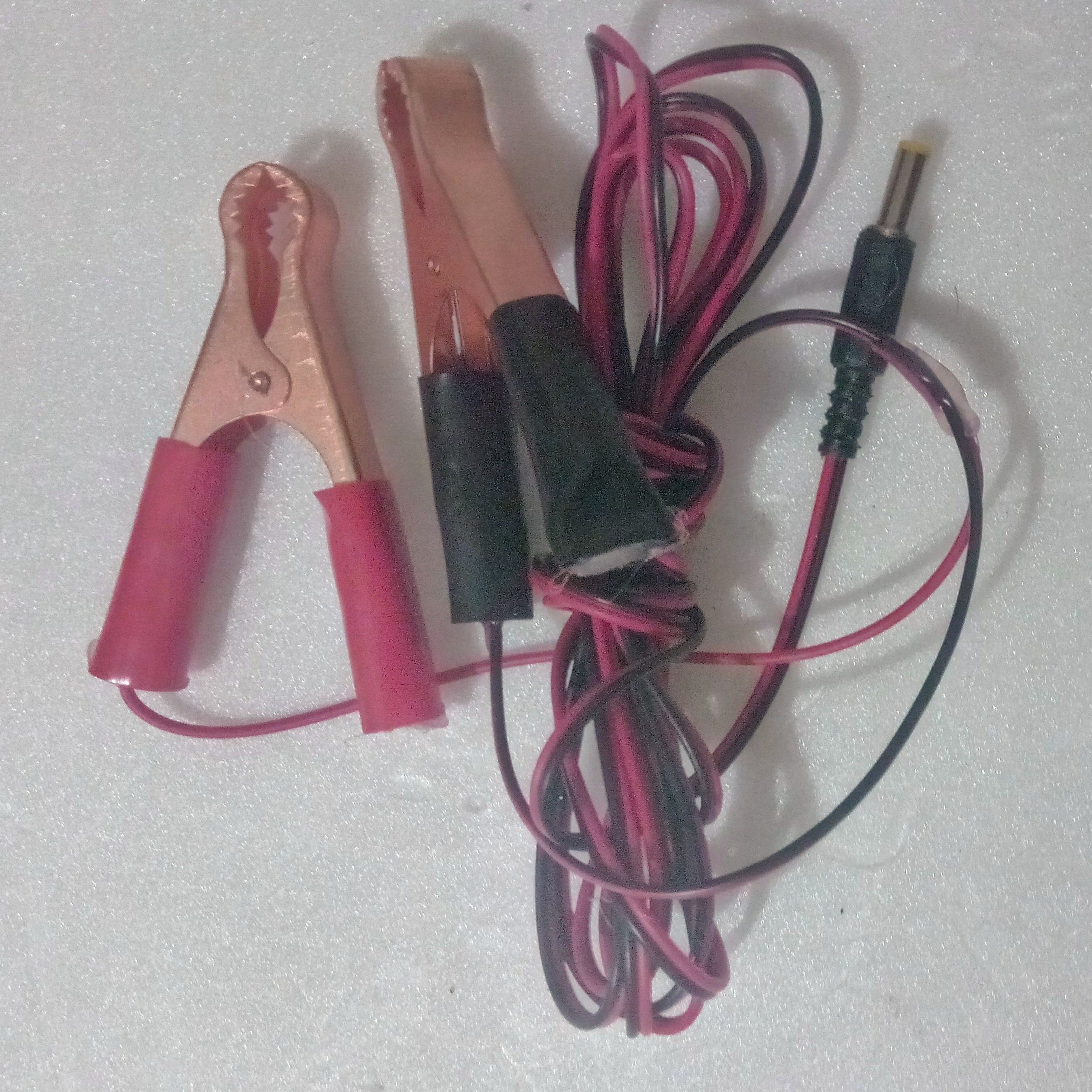

| The server package includes a 12/19V DC connector to the battery. This connector allows the active server to use the battery without significant changes |
| :--: |
 |
| :--: |

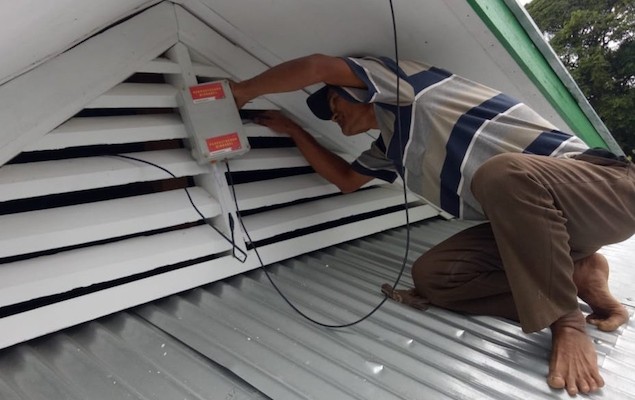

| Installation of the transmitter server box |
| :--: |
 |
| :--: |

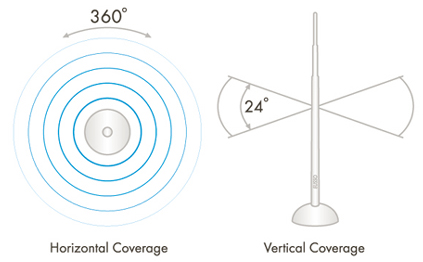

| Omni antenna character installed on the server. The radiation of this antenna is strong towards the 24 degree horizontal and weaker towards the bottom. |
| :--: |
 |
| :--: |

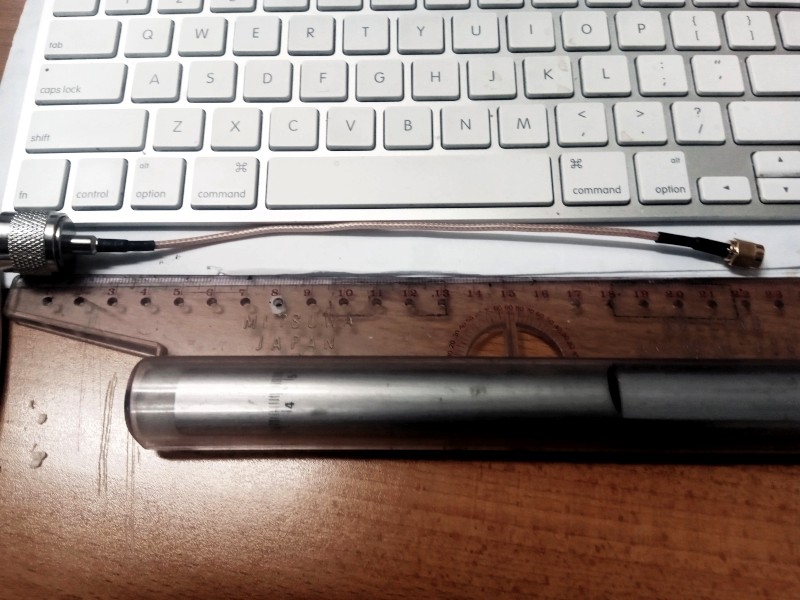

| Server connector cable to WIFI type N-Male - RPSMA with teflon material. This cable was sent later to replace the old kodian quality cable. Cable length 23 cm to suppress signal loss. |
| :--: |
 |
| :--: |

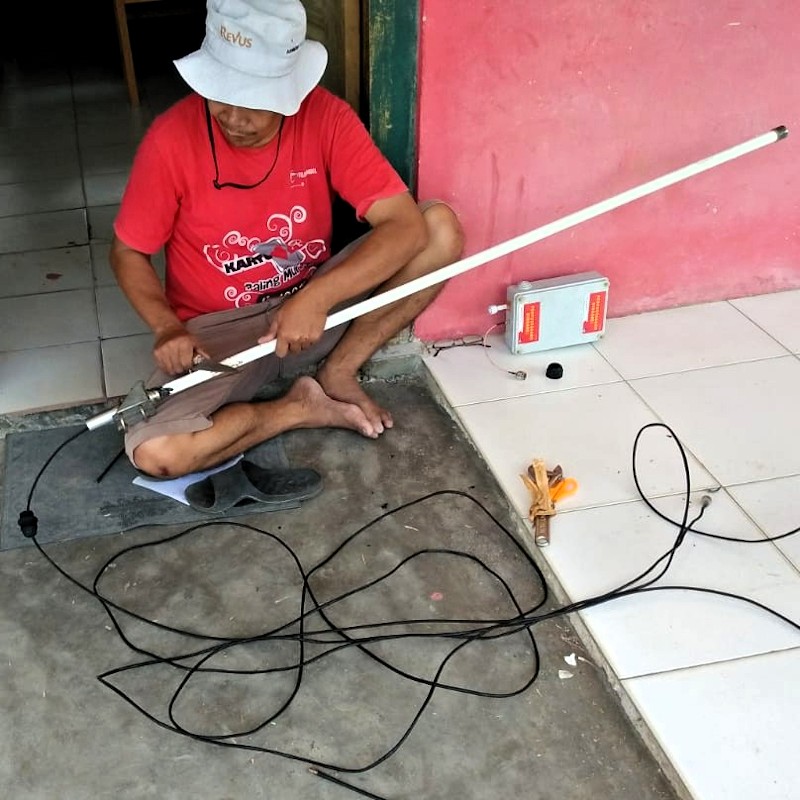

| Residents took down the antenna and box for re-installation. Reinstallation was forced due to substandard system performance. The components replaced are the server adapter to the antenna and the 3A/12V DC power cable. Photo: Jaka Marlansius |
| :--: |
 |
| :--: |

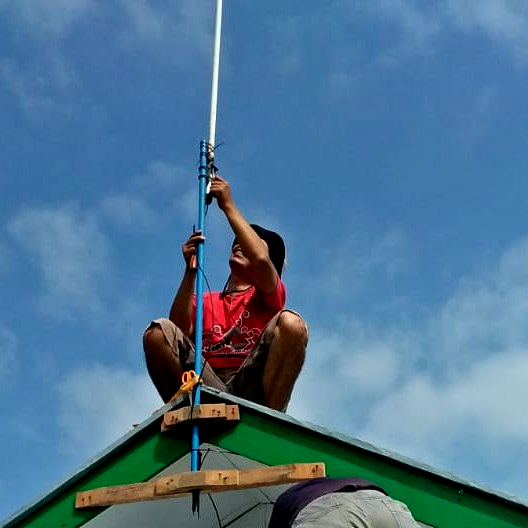

| Antenna reinstalled. Such a process is part of the information technology transfer process with remote technical assistance. Residents learn to recognize the characteristics of wireless networks, throw allegations of errors, formulate solutions, and test the results of solutions. Photo: Jaka Marlansius |
| :--: |
 |
| :--: |

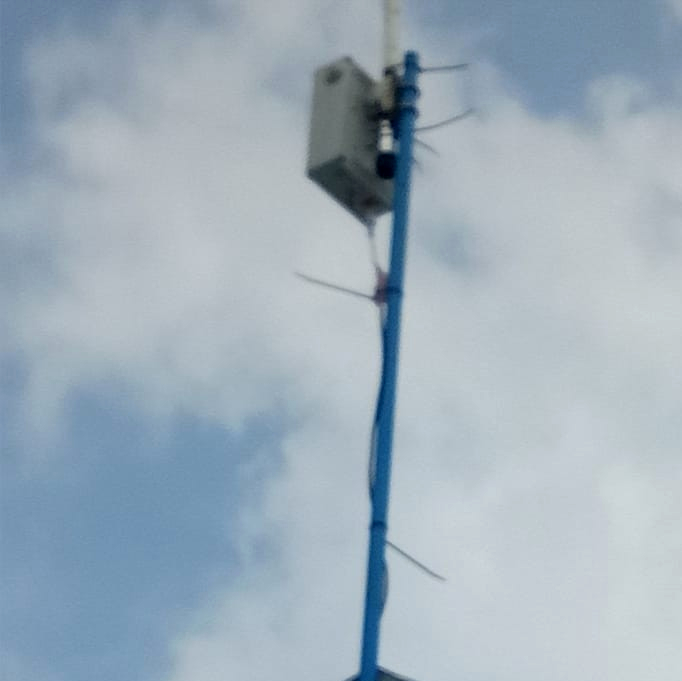

| Visual confirmation of installation. This time the server and antenna were installed side by side to reduce signal loss. Photo: Jaka Marlansius |
| :--: |
